Mining Support U Beam Steel Arch Supports

Mining Support U Beam Steel Arch Support is mainly used for mining tunnel support ,with the features of high pressure steel structure.

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of Mining Support U Beam Steel Arch Supports

Mining Support U Beam Steel Arch Support is mainly used for mining tunnel support ,with the features of high pressure steel structure.
Main purposes: mainly used in mine tunnel, mine tunnel secondary purpose of support, as well as the support of the mountains tunnel support.
Main features: pressure, supporting a long time, easy to install is not easy deformation characteristics.
1)Specification: U25, U29, U36;
2)Assembly: top beam, two landing legs, four clamps, two baseplates
3)Material: 20MnK Q275
4)Grade: SS400 Q235 A36
5)Size: 50mm*37mm*4.5mm-320mm*88mm*8mm

Parameter of Mining Support U Beam Steel Arch Supports

Specification:

U25, U29, U36

Assembly:

Top beam, two landing legs, four clamps, two baseplates

Material:

20MnK Q275

Web width:

50mm-320mm

Web thickness:

4.5mm-9.5mm

Flange width:

37mm-88mm

Standard:

GB JIS ASTM

Length:

6/9/12m

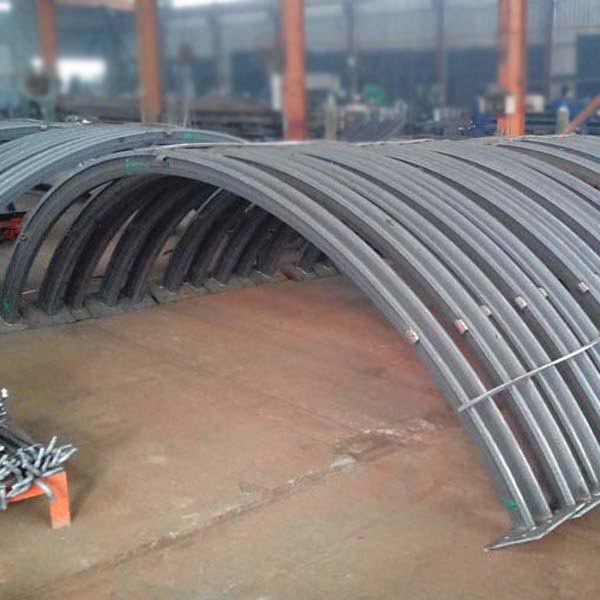

Pictures of Mining Support U Beam Steel Arch Supports
