Introduction of CTY2.5 / 6G 2.5t Explosion-proof Battery Powered Mine Electric Locomotive
1.narrow gauge battery locomotive
2.explosion-proof
3.one year warranty
4.overseas after sale services are available
Features of CTY2.5 / 6G 2.5t Explosion-proof Battery Powered Mine Electric Locomotive
a. CTY2.5 / 6G 2.5t Explosion-proof Battery Powered Mine Electric Locomotive includes chopped wave intelligent speed regulation and resistance speed regulation based on speed regulation mode.Includes safety and special explosion-proof version based on their applicable site.b. Small size,short wheelbase,flexible,smooth and reliable mechanical braking.
Simple structure and easy maintenance.
c. Used for roadway,small-scale mine transportation and medium-size mine vehicle.
Parameter of CTY2.5 / 6G 2.5t Explosion-proof Battery Powered Mine Electric Locomotive
|
Model |
CTY2.5/6,7,9G |
|
|
Adhesive Weight |
2.5 tons |
|
|
Track Gauge |
600, 762 or 900mm |
|
|
Traction |
2.55kN |
|
|
Speed |
4.54km/h |
|
|
Max. Traction |
6.13kN |
|
|
Power Supply Device |
Voltage |
48V |
|
Capacity |
308 or 330Ah |
|
|
Power |
3.5kw*1 |
|
|
Size |
Length |
2330mm |
|
Width |
914,1076 or 1212mm |
|
|
Height |
1550mm |
|
|
Traction Height |
320 mm |
|
|
Wheelbase |
650mm |
|
|
Wheel Diameter |
Φ460mm |
|
|
Min. Turning Radius |
5m |
|
|
Controller |
Resistance or Pulsing speed regulation |
|
|
Brake Mode |
Mechanical |
|

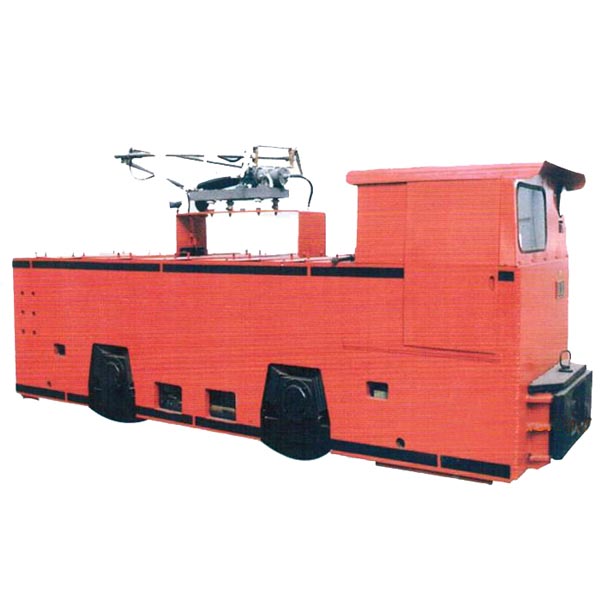

Pictures of CTY2.5 / 6G 2.5t Explosion-proof Battery Powered Mine Electric Locomotive
