PHYM Fire Fighting Equipment Foam Bladder Tank

PHYW fire fighting equipment foam bladder tank is composed of foaming tank, pressure type proportional mixer,inlet pipe,outlet pipe and control valve etc

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of PHYM Fire Fighting Equipment Foam Bladder Tank

PHYW fire fighting equipment foam bladder tank is composed of foaming tank, pressure type proportional mixer,inlet pipe,outlet pipe and control valve etc.When the pressure flow goes through the proportional mixer of this device,the water and foam can be auto mixed according to a certain proportion and the foam mixture will be output and provided to the foam generator and spray equipment to produce spray air foam for fire extinguishing.This device has two types:vertical and horizontal.The membranous device features a rubber made capsule in the stouage tank and the foam liquids,it is especially suitable for aqueous film foam liquids.Besides,the residue foam liquid is good for future use after fire extinguishing.This device enjoys the advantages of safety,reliability and high fire extinguishing efficiency.It is suitable for application in important locations such as petroleum enterprises,oil depots,oil terminals and airports etc.

Parameter of PHYM Fire Fighting Equipment Foam Bladder Tank

Type

Mixer Flow Rate L/S

Working Pressure (Mpa)

Foaming Liquid Tank Volume

Mixing Ratio %

Pressure Fall %

PHZY(M)32

4-32

  0.6-1.2

0.8, 1.0 ,1.5, 2.0 ,2.5, 3.0

3or6

≤20

PHZY(M)L32

4-32

0.5, 0.7, 0.8 ,1.0, 1.5 ,2.0, 2.5, 3.0

PHZY(M)64

16-64

2.0 ,3.0, 4.0 ,5.5, 7.6 ,10.0

PHZY(M)L64

16-64

2.0, 3.0, 4.0, 5.5, 7.6 ,10.0

PHZY(M)80

24-80

2.0, 3.0 ,4.0, 5.5 ,7.6 ,10.0

PHZY(M)L80

24-80

2.0, 3.0 ,4.0 ,5.5 ,7.6 ,10.0

PHZY64x2

32-128

10.0 ,13.0, 18.0, 25.0

PHZY80x2

48-160

10.0, 13.0, 18.0, 25.0

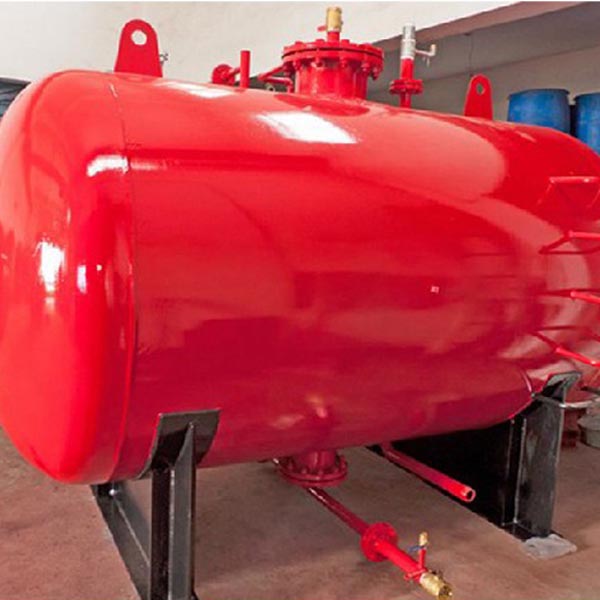

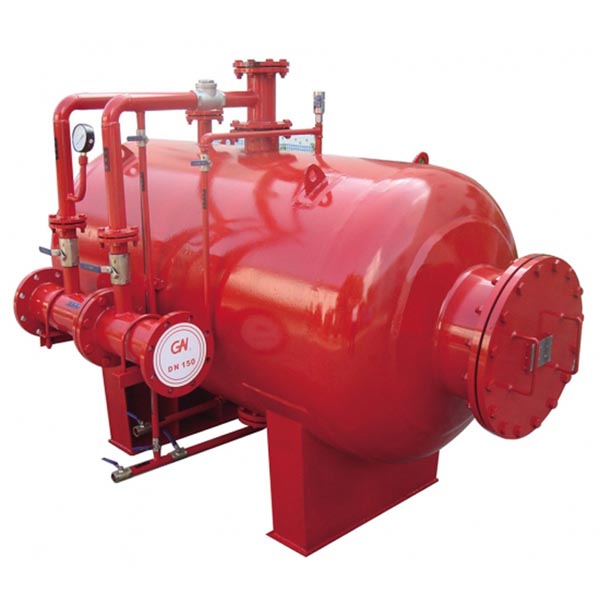

Pictures of PHYM Fire Fighting Equipment Foam Bladder Tank
