Railway Clamp KPO Colored or HDG for Rail Fastening

Railway Clamp KPO Colored or HDG for Rail Fastening is used for the form-fitting and rescue connection of two rail ends,wide variety of applications due to short and compact design,used in pairs.

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of Railway Clamp KPO Colored or HDG for Rail Fastening

Railway Clamp KPO Colored or HDG for Rail Fastening is used for the form-fitting and rescue connection of two rail ends,wide variety of applications due to short and compact design,used in pairs.The rail clamp device makes the cracked rail tight through joint splint and bolts when the rail is too late to be replaced, which makes sure the train can pass smoothly.

Parameter of Railway Clamp KPO Colored or HDG for Rail Fastening

Name

Rail Clamp

Assembly

base plate, cover plate, t bolt, nut, spring washer, flat washer, pin

Material

base plate and cover plate: ductile cast iron, cast steel

t bolt, nut, flat washer: Q235 carbon steel

spring washer: 60Mn,60si2Mn

Surface

plain, black, zinc plated, HDG, etc

Usage

railway, crane rail, or other rails

Light Rail Model

TG30/43/50

Heavy Rail Model

QU70/80/100/120

Samples

Samples are availible

Delivery

within 15 days after got payment

Package

bulk in carton, then on pallet, or according to customers' requirement

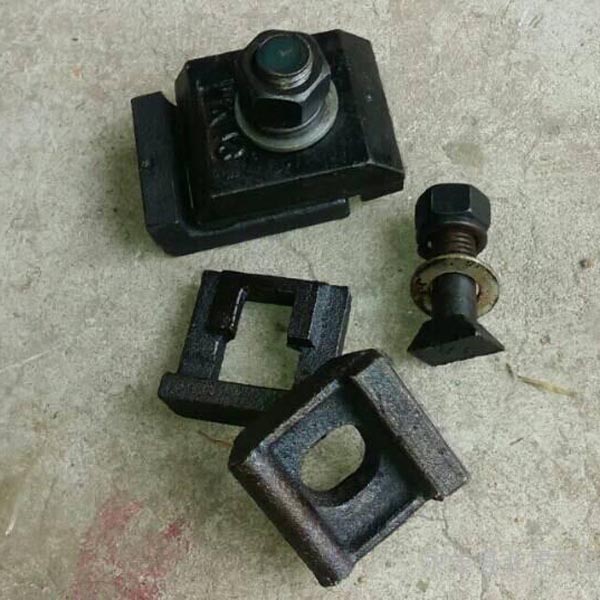

Pictures of Railway Clamp KPO Colored or HDG for Rail Fastening
