NCM-4 Petrol Engine Railway Rail Grinding Machine

NCM - 4 type internal combustion switch grinding machine is mainly used for grinding switch switch of tongue rail, frog heart rail, wing rail top surface and side fat side, also can burnish all kinds

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of NCM-4 Petrol Engine Railway Rail Grinding Machine

NCM - 4 type internal combustion switch grinding machine is mainly used for grinding switch switch of tongue rail, frog heart rail, wing rail top surface and side fat side, also can burnish all kinds rail top surface and side fat edge. Superior performance, reasonable structure, reliable quality, saves time and effort, is works departments maintenance line the necessary tools.

Features of NCM-4 Petrol Engine Railway Rail Grinding Machine

1.Gasoline driven, strong adaptability to an open working environment.
2.The feeding of the grinding controlled by the electric, high polishing precision.
3.Following copying, easy operation.

Parameter of NCM-4 Petrol Engine Railway Rail Grinding Machine

1, gasoline engine



Type

 HONDA - GX160

Power

 3.05 kW

Speed

 3600 r/min

2, general flat grinding wheel



Specification

 250 x 32 32

Maximum grinding linear speed

 40 m/s

3, grinding vertical stroke

 170 mm

4, grinding wheel position adjust the Angle (from the vertical direction up to two side Angle respectively)

 30

5, outer profile size

 2900 x 850 x 1000

6, the machine quality

 114 kg

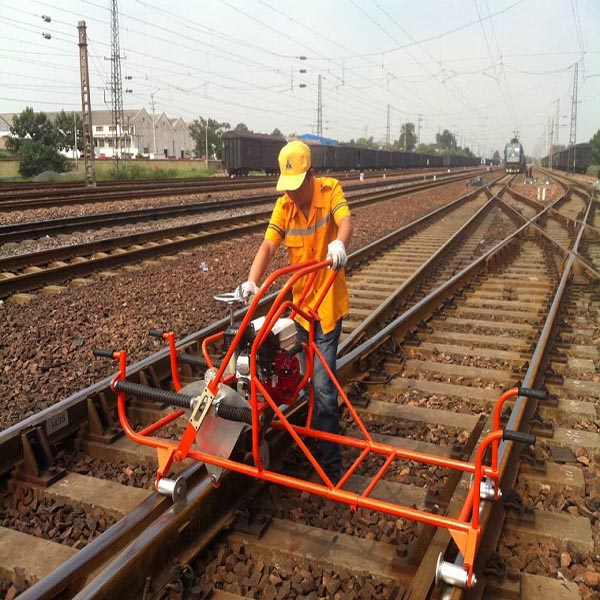

Pictures of NCM-4 Petrol Engine Railway Rail Grinding Machine
