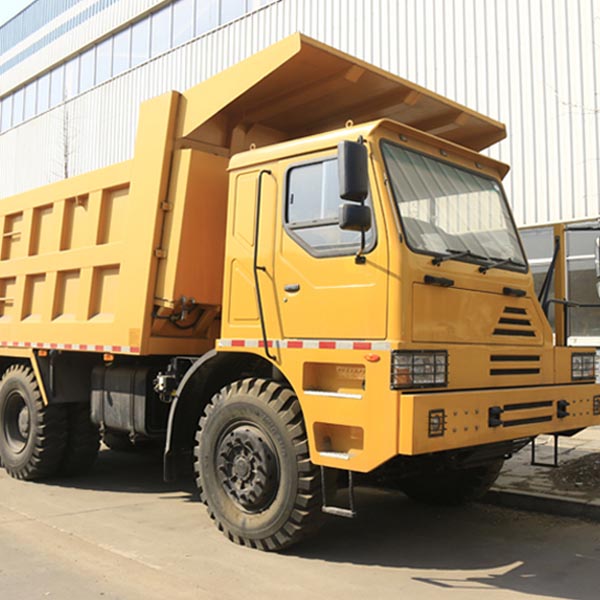

Howo 6*4 371hp 70T Heavy Duty Mining Off-Road Dump Truck

Truck Model

ZZ5707S3840AJ

Truck Brand

SINOTRUK--HOWO MINE DUMP TRUCK

Driving Style

Left hand driving

Dimension(L*W*H)(mm)

8460*3200*3475

Cargo body size (L*W*H, mm)

5900*3100*1800 32.92m3

Cargo thickness(mm)

Bottom:14mm, Side:12mm,rear door: 12mm

Cargo material

Manganese plate

Wheelbase

3800+1350

Approaching/Departure Angle(°)

29/35.5

Curb weight(kg)

20000

Loading Weight(kg)

80000

Engine

Model

WD615.47, water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter cooling, directly injection

Fuel type

Diesel

Horse Power, max(kw/rpm)

371HP

Emission

EUROII

Fuel tanker capacity(L)

400

Clutch

430 diaphragm spring clutch Type A, hydraulic air booster

Transmission

Model

HW19710   10 forwards and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

ZF8098hydraulic steering with power assistance

Front axle

HF12

Rear axle

AC26reinforced wide cast steel, dual reduction, double tires drive axle(10.24)

Min. Ground Clearance

380mm( Front Axle)

Clutch

430diaphragm spring clutch A-type, hydraulic control and gas assistant

Color

Like picture

Tyre

14.00-25 big size mining use special tire
10PCS with one spare tire

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HW7D cab, (with air-condition), Unilateral cab
skeletal skin-covered large surface strengthened special cabin, with large area of windshield glass, movable glass of the left door, visible sliding right window, HOWO instrument desk, air conditioner, heating system, adjustable seat, two-speed wiper and glass washer, sun visor, safety belts, view mirrors right and left, up and down road view mirrors, front shock absorber, rear spring coil diaphragm shock absorber on both sides, double hydraulic lock, which can turn forward with 50, with commode handle and footstep on the right platform
