Introduction of Underground Mining Heavy Electric Powered Shuttle Car
Underground Mining Heavy Electric Powered Shuttle Car (also called mobile gangue storage in coal mine) is an high-efficient gangue transport device, mainly used in the projects of underground roadway, tunnel, culvert, etc. Usually it’s guided by locomotive and can be used together with mucking loader, rock loader. It has small type and large type, covering nine versions from 4m3 to 30m3.
Characteristics of Underground Mining Heavy Electric Powered Shuttle Car
1. Small shuttle harvester is mainly used for railway tunnel, hydraulic culvert, such as underground mine roadway and military cavern excavation construction. It is a kind of efficient equipment of transporting the materials;
2. Good shock absorption performance, stable operation, not easy to fall;
3. Small shuttle car is especially suitable for bending more mechanized storage construction of the tunnel and lane section.
Advantages of Underground Mining Heavy Electric Powered Shuttle Car
1. Professional production harvesters: material car, fixed mining car , bucket-tipping car, drop bottom car ,song rail side discharge type harvesters, hydraulic pressure side discharge type harvesters, flat car, large spindle type harvesters etc.
2. Hot sales, good price, good quality and reliable service system.
3. Supply various shuttle cars and accessories, such as 4,6,8,10,12,14,16,20,25,30,45 volume.
4. Fast Shipment, it generally will be shipped in 10 days.
Parameter of Underground Mining Heavy Electric Powered Shuttle Car
|
Model |
ST(D)-14B |
ST(D)-16B |
ST(D)-20B |
ST(D)-25B |
ST(D)-30B |
|
|
Volume(m3) |
14 |
16 |
20 |
25 |
30 |
|
|
Self weight(t) |
13.6 |
17.8 |
19.84 |
22.6 |
28.8 |
|
|
Loading capacity(t) |
28 |
32 |
40 |
50 |
60 |
|
|
Track gauge(mm) |
600/762/900 |
|||||
|
Overall dimension size |
Length(m) |
11.25 |
12.84 |
12.9 |
14.3 |
17.8 |
|
Width(m) |
1.77 |
1.77 |
1.78 |
2.05 |
1.8 |
|
|
Height(m) |
2.56 |
2.68 |
2.68 |
2.7 |
2.7 |
|
|
Min. turning radius(m) |
18 |
20 |
25 |
25 |
30 |
|
|
Loading height(m) |
1.45 |
1.52 |
1.53 |
1.7 |
1.73 |
|
|
Disassemble time(min) |
2 |
4 |
4 |
4.5 |
4.5 |
|
|
Max running speed(km/h) |
15 |
|||||
|
Max motor power(kw) |
18.5 |
18.5*2 |
22*2 |
22*2 |
30*2 |
|
|
Drive mode |
single drive |
double drive |
||||
|
Center distance of truck frame(mm) |
5450 |
6250 |
6350 |
7080 |
7250 |
|
|
Applicable rail(kg/m) |
>=33 |
>=33 |
>=38 |
>=38 |
>=43 |
|
|
Applicable roadway size(width*height)(m) |
3.4*3.5 |
3.5*4 |
4*4 |
4*4.5 |
5*5.5 |
|

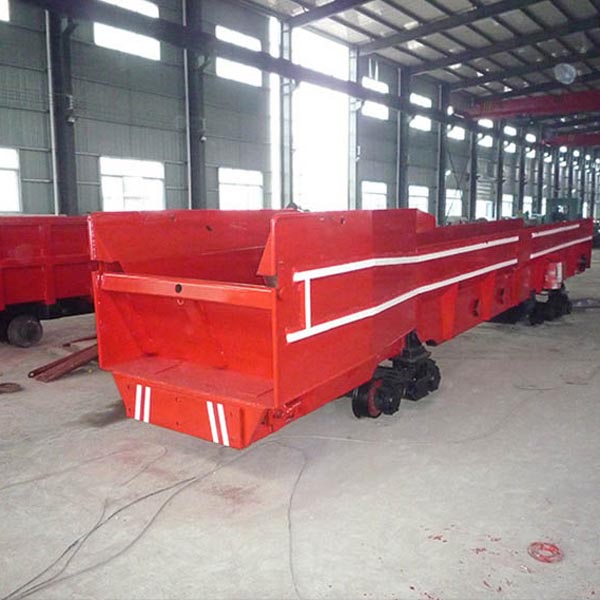

Pictures of Underground Mining Heavy Electric Powered Shuttle Car
